IF-2000 Interface Board

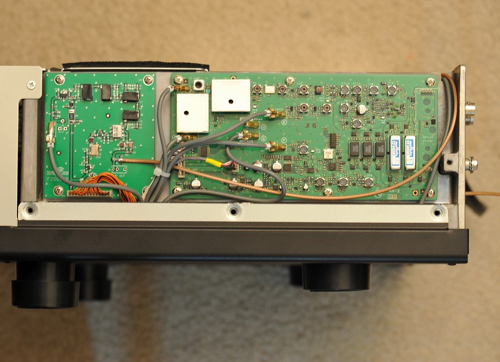

The IF-2000 IF interface board adds an IF output to the Yaesu FT-2000 and FT-950.  This board allows the interfacing of the transceiver to an RFSPACE Software Defined Receiver or panoramic adapter. The addition of an SDR to the Yaesu radios greatly enhances its capabilities.

Here are some of the key enhancements of the RFSPACE SDR-IQ / IF-2000 board:

  1. 1.Adds the most powerful panoramic adapter available for the Yaesu radios. Experience unprecedented speed, bandwidth and resolution.
    2.Adds a 190 KHz wide waterfall / spectrum display.
    3.Adds two additional AM/FM/CW/SSB demodulators.
    4.Allows the recording of 190 KHz of band to the computer hard drive centered at the radio VFO frequency.
    5.Allows the monitoring of HF and 6 meter frequencies.
    6.Adds the ability to monitor the transmitter spectrum.

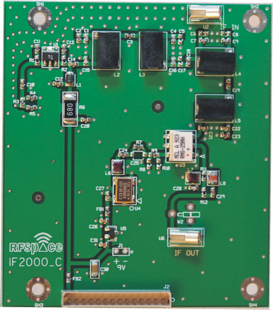

NEW IF-2000 Rev C. IF Interface Board for the Yaesu FT-2000 and FT-950 Transceiver

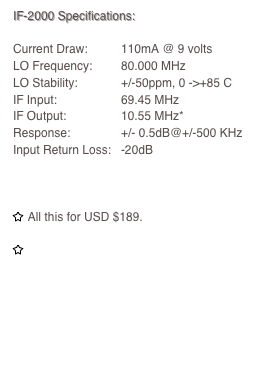

IF-2000 Specifications: Current Draw: 110mA @ 9 volts LO Frequency: 80.000 MHz LO Stability: +/-50ppm, 0 ->+85 C IF Input: 69.45 MHz IF Output: 10.55 MHz* Response: +/- 0.5dB@+/-500 KHz Input Return Loss: -20dB  All this for USD $189.  Visit order page for available purchase options and distributors.http://www.rfspace.com/Order.htmlhttp://www.rfspace.com/Order.htmlshapeimage_3_link_0shapeimage_3_link_1

The SDR-14™ and SDR-IQ are marketed, sold and warranted by RFSPACE, Inc. under license from Moetronix, Co., Atlanta, USA.
