NetSDR



SPECIFICATIONS

Frequency Range: 10 KHz - 32 MHz *

Digital Down Converter: Xilinx FPGA

Synchronization : Optional 10 MHz reference input

PC Interface: Ethernet 100 base-T  (UDP/TCP/IP)

Filters: 115+ dB 80% alias free BW (Single DDC)

Output IQ Sample Rate: 12.5 KHz to 2 MHz

Output I/Q Bandwidth: 10 KHz to 1.6 MHz
DDC Flatness: <0.5 dB

Dynamic Range: 105 dB
Phase noise @ 15 MHz: -152 dBc/Hz @10KHz

MDS ADC Low Gain (500Hz): -128dBm 10 MHz

MDS ADC High Gain (500Hz): -129dBm 10 MHz

Analog to Digital Converter: 16 bit
IQ RX Mute Control: Available on RS-232 pin Preselection: 10 sub-octave filters

Attenuators: 0, -10dB, -20dB, -30dB

Sample Rate:  80.000 MHz

Memory for 40 MHz Wide Mode: 65536 x 16 bit

Operating Temperature: 0C - 40C

External Radio Control: Built-in RS-232 port

Dimensions: 9” x 1.5” x 7.1” W x H x L

Power: 5 Volts DC @ 1.5 Amp **

Connections: 3 x BNC (RF 1, Ext Ref, IF Out/RF 2) , RS-232, USB Setup, Stereo In, Ethernet, Power, RX Mute.
Compliance: CE,FCC,IC

* Usable to 34 MHz+

Ethernet Bandwidth Requirements:

2.00 MHz Output Sample Rate = 64.0Mb/s*16bit IQ

1.00 MHz Output Sample Rate = 48.0Mb/s*24bit IQ 0.50 MHz Output Sample Rate = 24.0Mb/s*24bit IQ 0.01 MHz Output Sample Rate = 0.60Mb/s*24bit IQ

*Specifications subject to change without notice.


Expansion:

Internal downconverter
Internal 10
MHz frequency lock board (Option 01)
Internal upgrade module


BROCHURE

High performance 16 bit SDR on the network

The NetSDR radio is a high performance networked SDR with 1.6 MHz bandwidth. The NetSDR uses a high performance 80 MHz, 16 bit ADC with both dithering and randomization for best performance. The output I/Q bandwidth is configurable via software. PC communications are handled over a 100 base-T port using 24 or 16 bit I/Q words.


The NetSDR is a complete plug and play solution. As opposed to other SDRs in the market, there is no need for additional preamplifiers, preselectors or code development.

The unit is compatible with the SpectraVue and SDR-Radio software that will have you up and running in minutes. The software includes analog and digital mode demodulation and I/Q capture of spectrum at up to a 1.60MHz BW. The SDR-Radio software allows the use of the NetSDR over the internet. The full 1.6 MHz waterfall and demodulation audio can be transported via a 5 KB/s link. For those interested in writing their own applications, RFSPACE supplies a fully documented protocol for communicating with the hardware. There is no need to calculate the downconverter DSP parameters. The NetSDR just needs the center frequency, attenuator and preselector filter settings, output sample rate and mode to begin streaming data. Other solutions require complicated USB interfacing that is platform specific. The NetSDR utilizes straight TCP/IP and ethernet for all communications. This offers the highest possible performance due to the highly optimized ethernet drivers on PC, Mac and Linux systems.


The NetSDR packets are fully routable. This means that the receiver can be placed at remote locations. Multiple receivers can also be combined and it’s data transported over a higher data rate ethernet pipe using simple switches and routers. In this application, each NetSDR can be set to a different IP address or port.


The new NetSDR trigger input option -02  will reset the NCO phase to zero degrees and clear the internal filter buffers until a trigger signal is received. This allows the synchronization of multiple NetSDR applications.

NetSDR NO OPTIONS    US $1449


NetSDR-01   US $1999

w/ ULTRA LOW NOISE OCXO REFLOCK
(Temp Stability +/-
1.0 ppm Max  0C-50C unlocked)

Oscillator Phase Noise of -168 dBc/Hz at 10 KHz

10 MHz Reference Input.


NetSDR-01-02 (Spectra)   $2998 *** Now Shipping

w/ ULTRA LOW NOISE OCXO REFLOCK
(Temp Stability +/-
1.0 ppm Max  0C-50C unlocked)

Oscillator Phase Noise of -168 dBc/Hz at 10 KHz

10 MHz Reference and Trigger Input for Triggered Recordings and Triggered Startup.

Trigger clears FIR buffers and resets NCOs to zero phase for phase coherency.


NetSDR-04   US $1675  ** Now Shipping

w/ LOW NOISE VCXO REFLOCK
(Temp Stability +/-
25 ppm Max  0C-50C unlocked)

Oscillator Phase Noise of -155dBc/Hz at 10 KHz

10 MHz Reference Input.


NetSDR-04-02   $2674 *** Now Shipping

w/ LOW NOISE VCXO REFLOCK
(Temp Stability +/-
25 ppm Max  0C-50C unlocked)

Oscillator Phase Noise of -155dBc/Hz at 10 KHz

10 MHz Reference and Trigger Input for Triggered Recordings and Triggered Startup.

Trigger clears FIR buffers and resets NCOs to zero phase for phase coherency.


NetSDR Rack Mounting Kit  US $29

(Includes 2 brackets and screws to mount to NetSDR)




Our products are proudly designed, manufactured and assembled in the USA.







Option 01 Oscillator Phase Noise

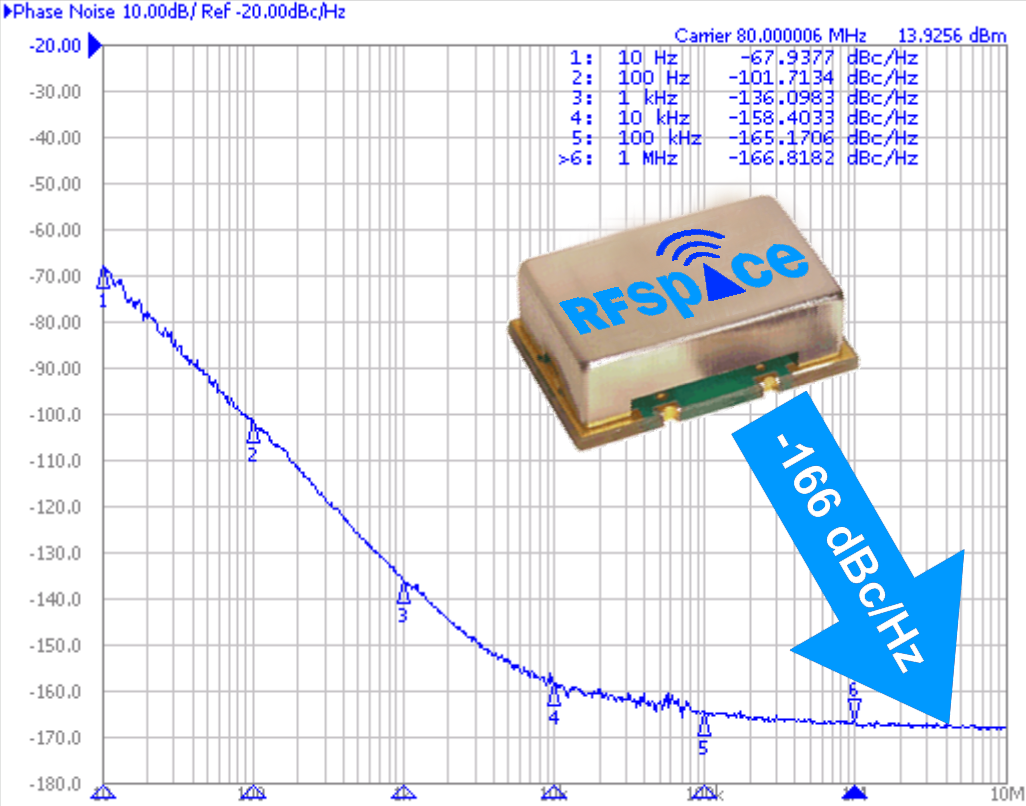

Option 04 Oscillator Phase Noise
